CNC machining factory · Dongguan, China · Since 2017

Custom CNC machining service, from prototype to 10,000 pcs

Precision parts milled and turned in our own factory in Dongguan. Start with a prototype; your batch then reuses the same program and fixtures, so production parts match the ones you tested. For machine builders, hardware product teams, and research labs.

Raymond Liang
Raymond Liang, Co-founder & Technical Sales Manager
Your contact for quotes and drawing questions · LinkedIn
Aluminum part clamped on a 3+2 rotary table inside a Meili machining center
3+2 machining · Dongguan factory
Three finished machined aluminum parts with pockets and mounting holes
~23
CNC machines & lathes in-house
3+2
Multi-face machining in-house
1 pc+
Prototypes, DFM before price
10,000 pcs
Batch ceiling per part number
Remake
At our cost if off-drawing
From our shop floor

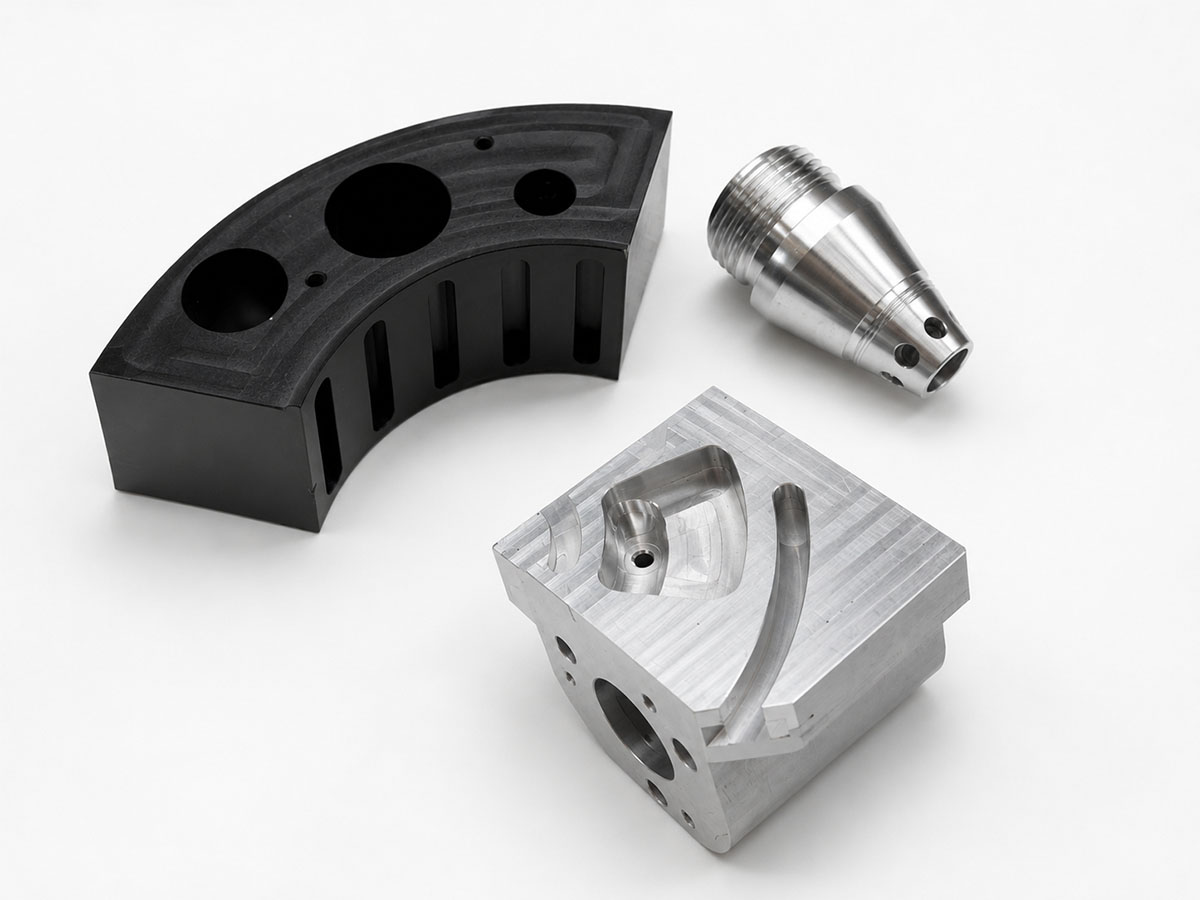

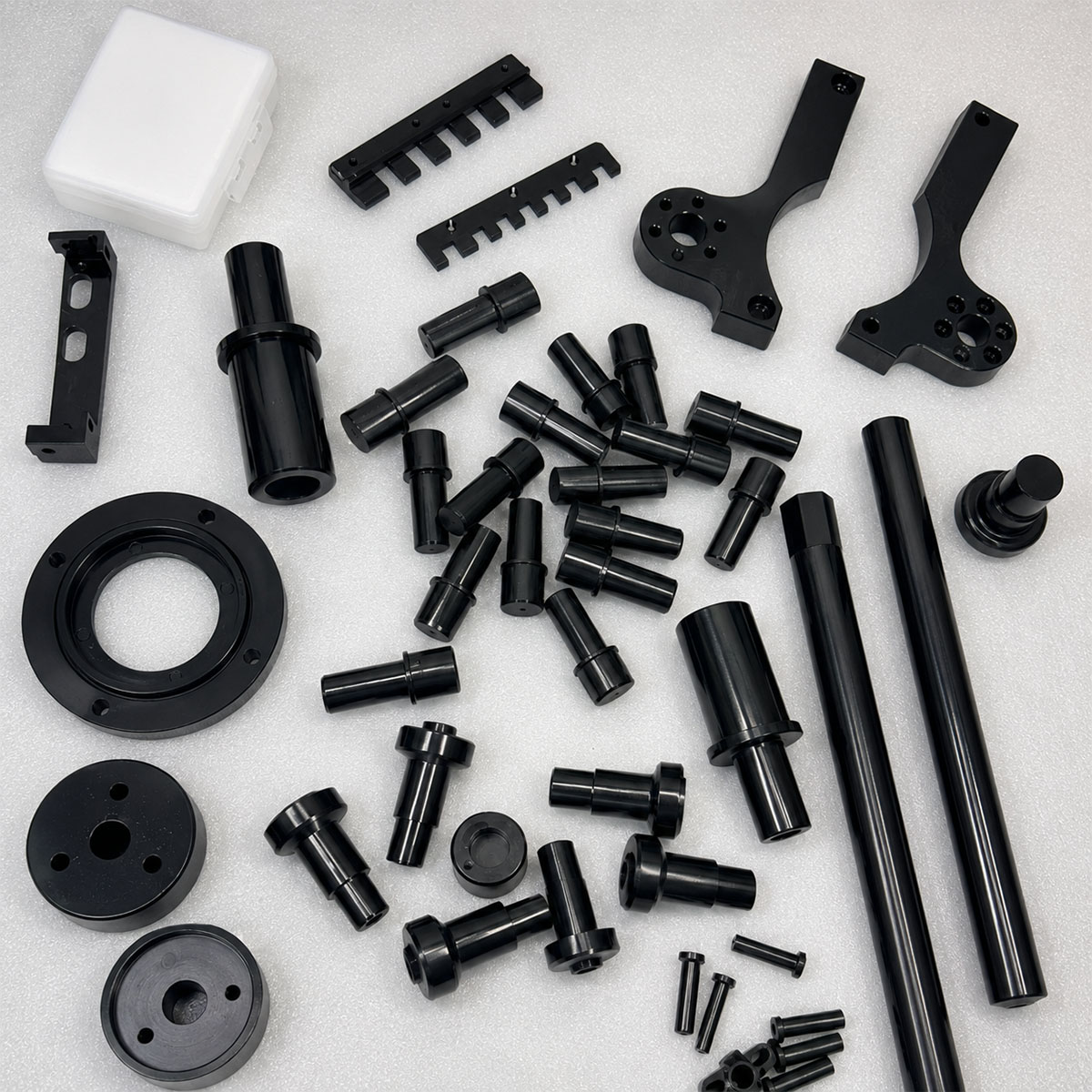

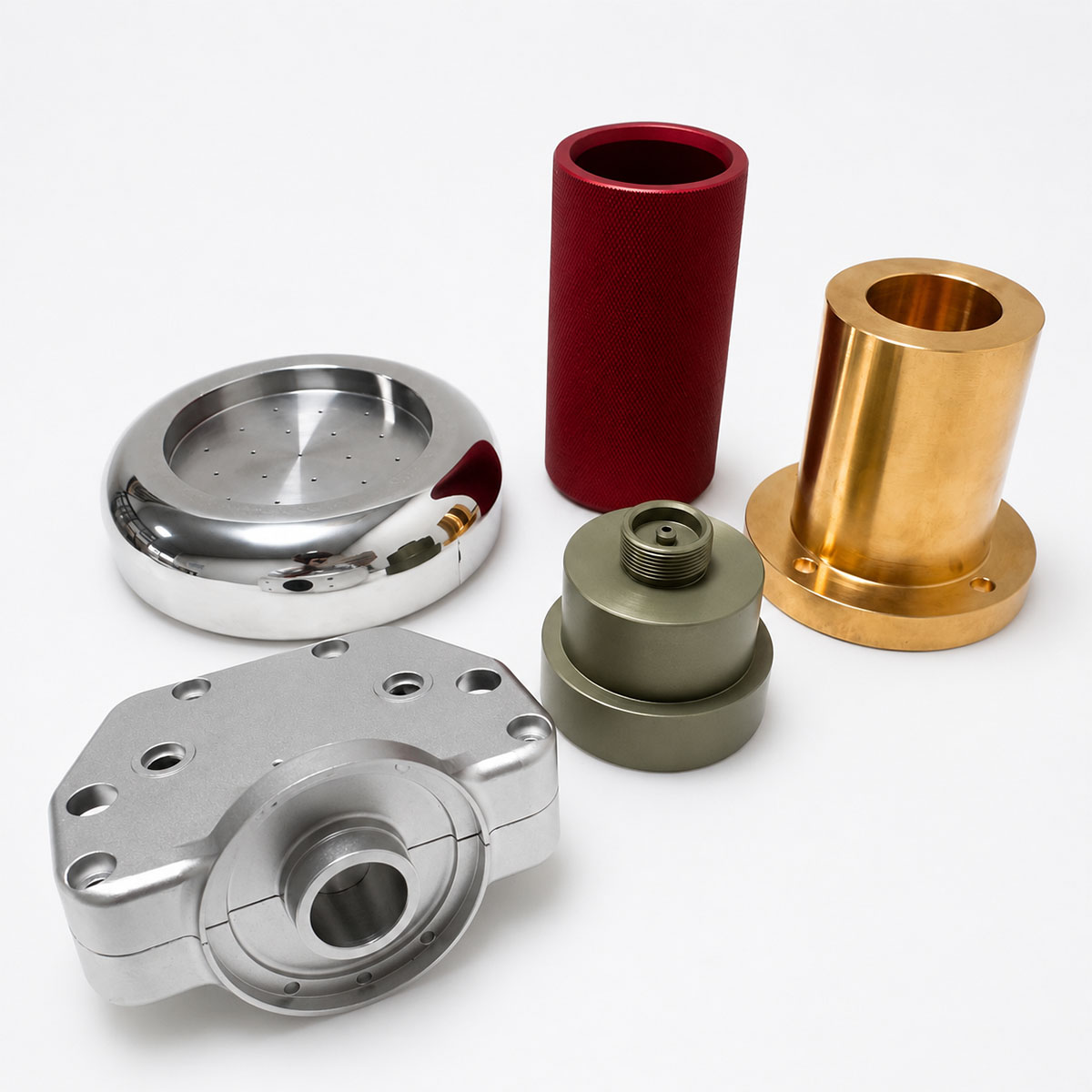

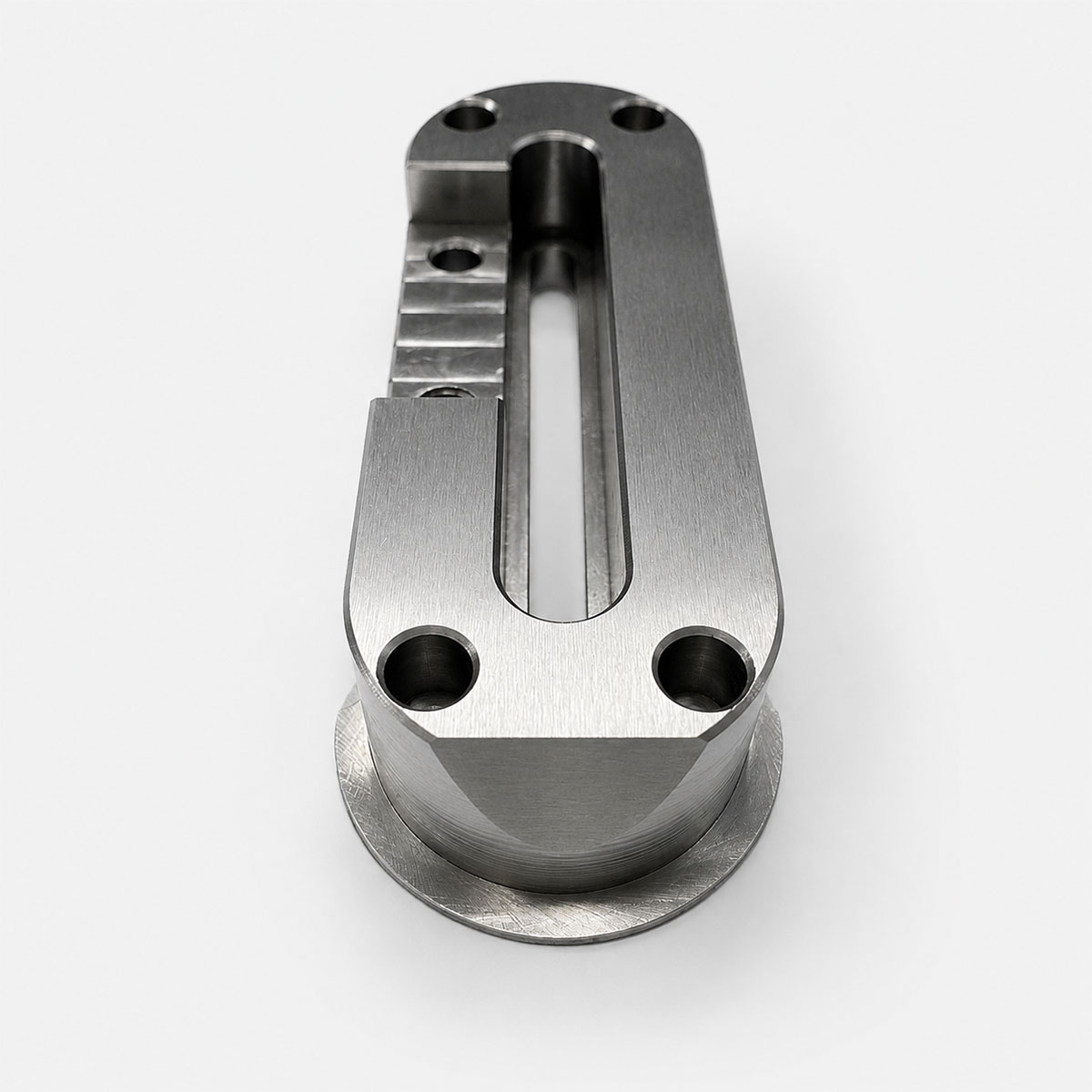

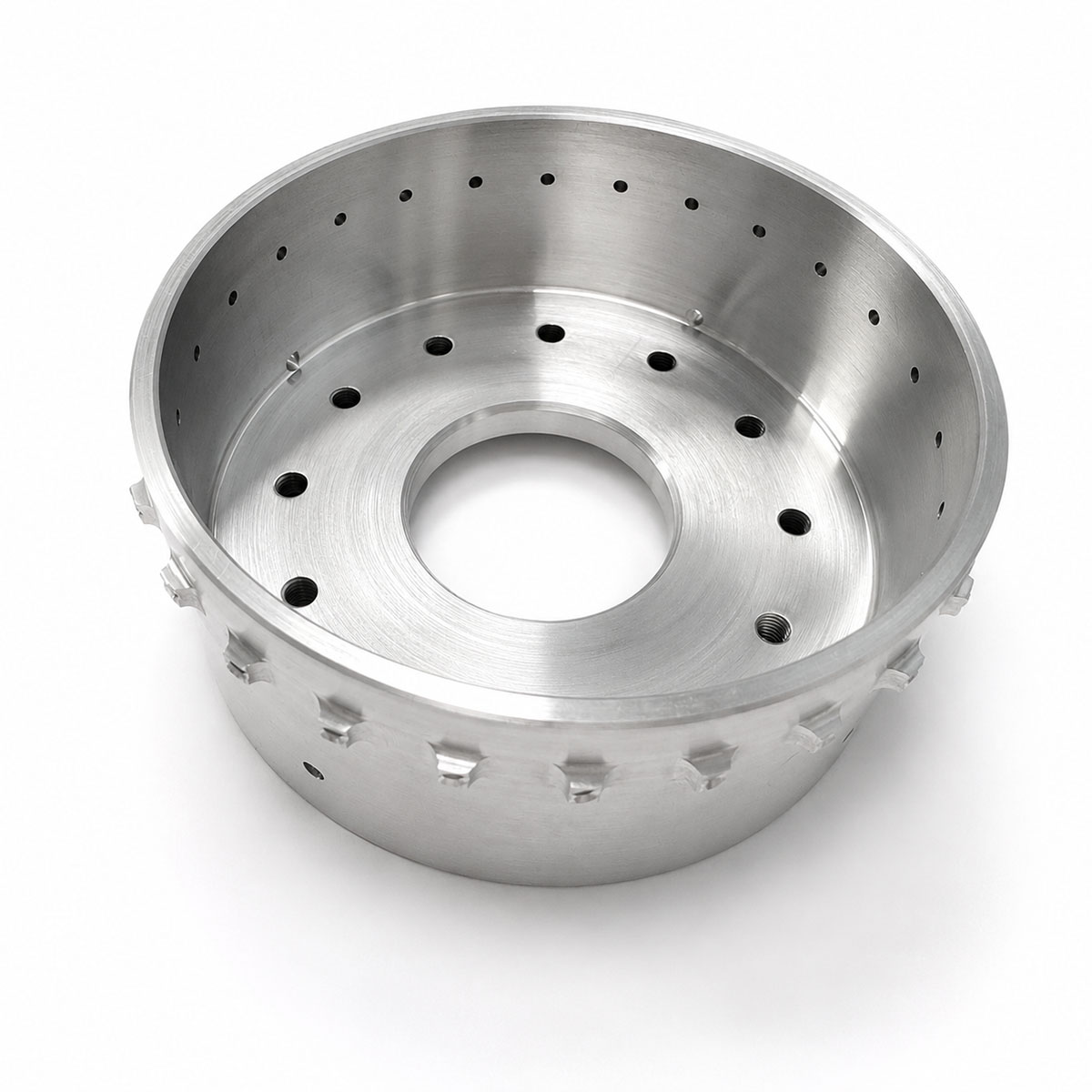

Precision machined parts we make

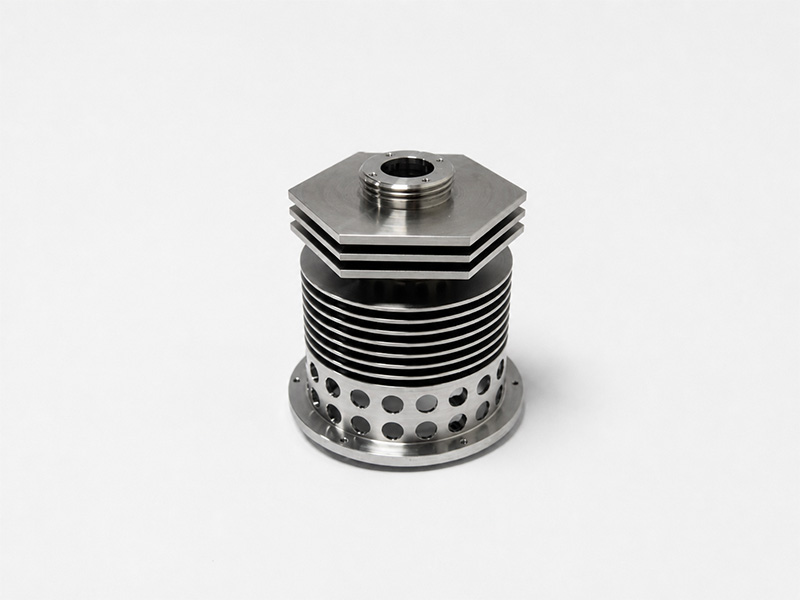

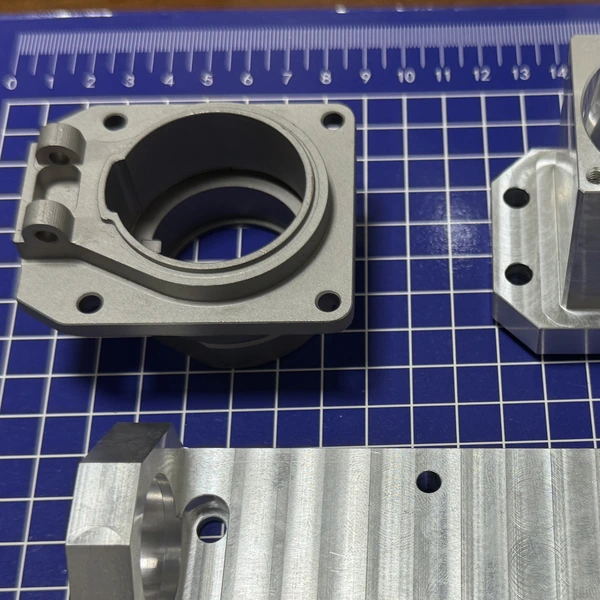

Recent parts from our shop floor, photographed as they left inspection. Milled, turned, and finished to the customer's drawing.

Send Your Drawing

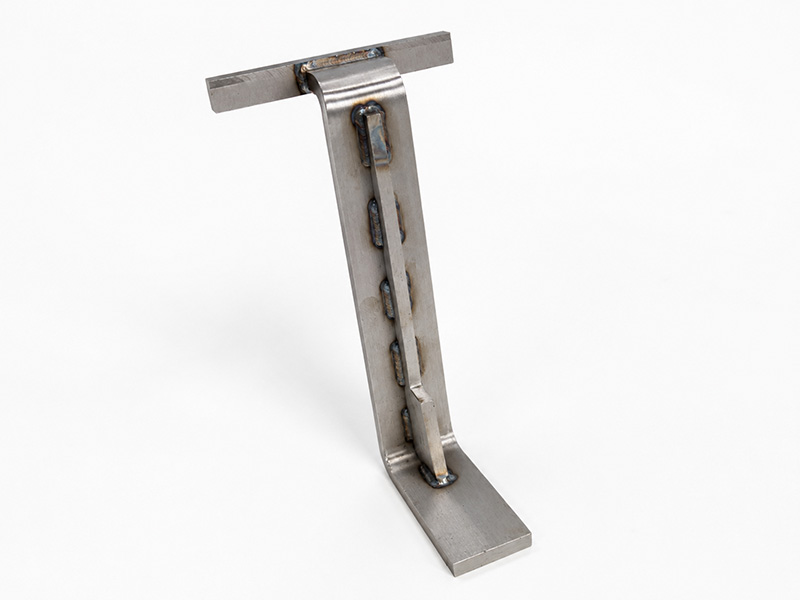

Also: sheet metal brackets and guards and plating and heat treatment, coordinated through managed partners.

One part, start to finish

One job, from aluminum block to finished part

The 3+2 part from the top of this page: a small cosmetic housing that is nickel-plated after machining, so every critical size has to be cut with room left for the plating.

Material
6060 aluminum
Quantity
1,000 pcs
Tightest tolerance
±0.01 mm
General tolerance
ISO 2768-fH
Finish
Nickel plated, Ra 0.8
Three aluminum housings being machined in a fixture on a 3+2 rotary table01

Machined in one clamping

Fixtured on a 3+2 rotary table, so features on several faces are cut without re-clamping and stay aligned to each other.

Digital micrometer reading 8.245 mm on a machined aluminum housing02

Width: 8.245 mm

Drawing: 8.25 ±0.02 mm after plating. Measured with a micrometer before the parts go to nickel plating.

Height gauge reading 1.177 mm on a machined aluminum housing03

Step height: 1.177 mm

Drawing: 1.2 ±0.02 mm after plating. Cut slightly under size on purpose, so the nickel layer brings it into tolerance.

Finished machined aluminum housing with pockets and threaded holes, ready for plating04

Burr-free, ready to plate

A cosmetic part: no burrs and no visible tool marks, because plating shows every flaw. Then nickel plated and packed by part number.

Capabilities

CNC machining capabilities at a glance

The ranges we work in every day. If your part sits near a limit, send the drawing and we'll confirm at review.

Full capabilities
1000 × 400 mm
Max milling size, 200 mm height
Ø400 × 900 mm
Max turning size, approx.
±0.01 mm
Critical tolerances, confirmed at drawing review
M1
Smallest threads, as on the housing above
Rows of CNC machining centers on the Meili Machining shop floor in Dongguan
Our machining floor, Dongguan
Part held in a CNC lathe chuck during turning

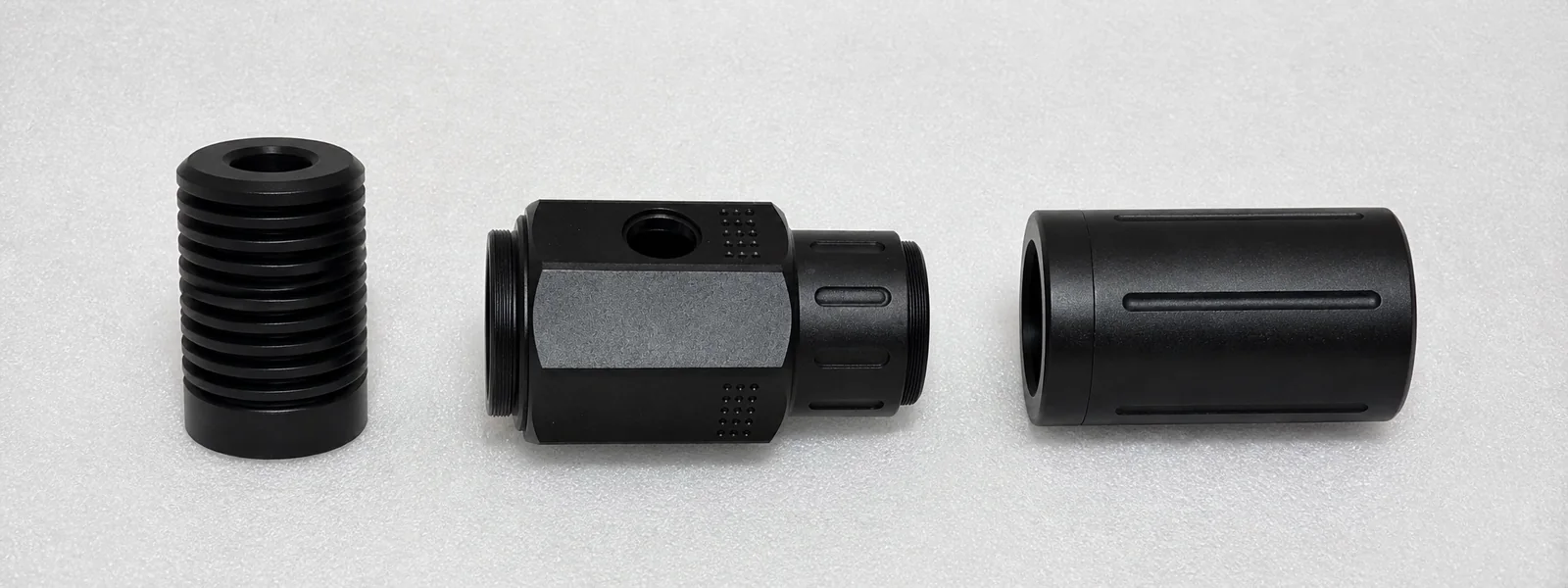

CNC turning
Machining center milling a part under coolant

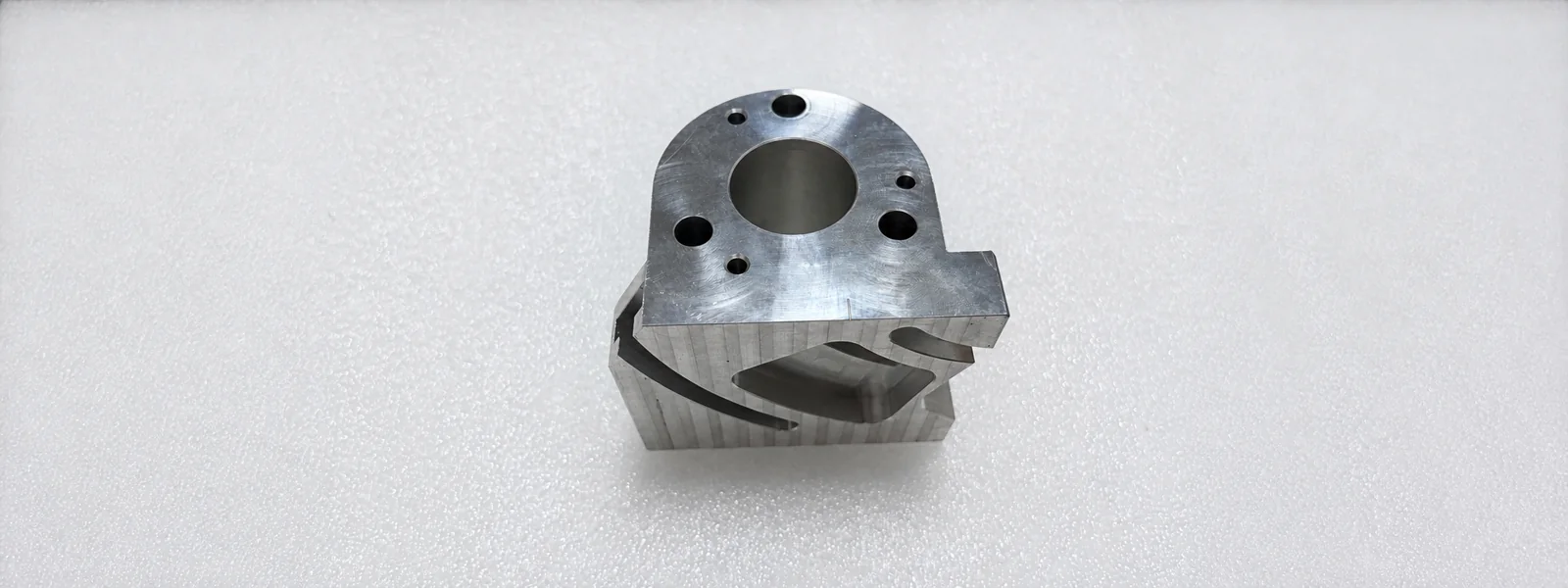

Milling under coolant
Processes

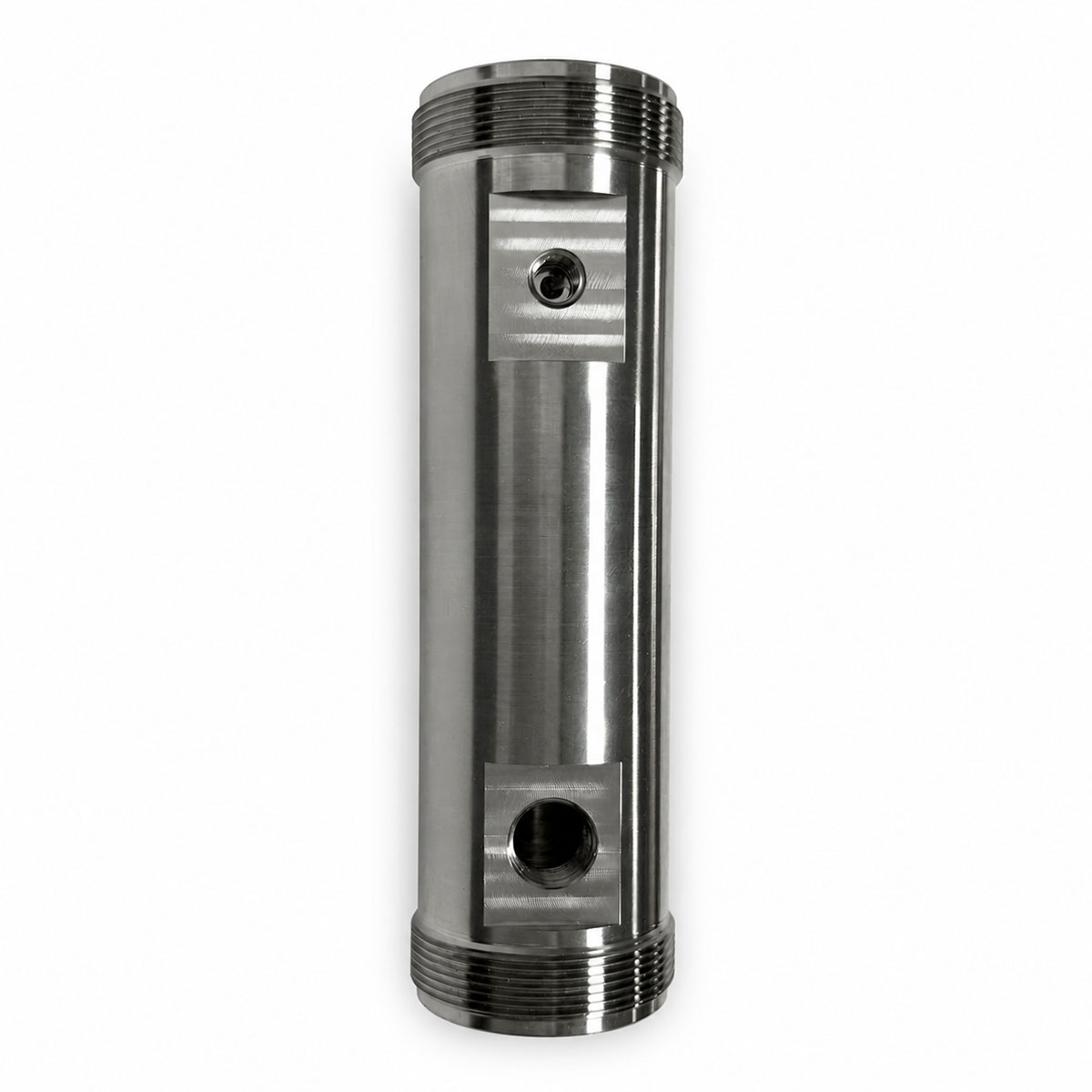

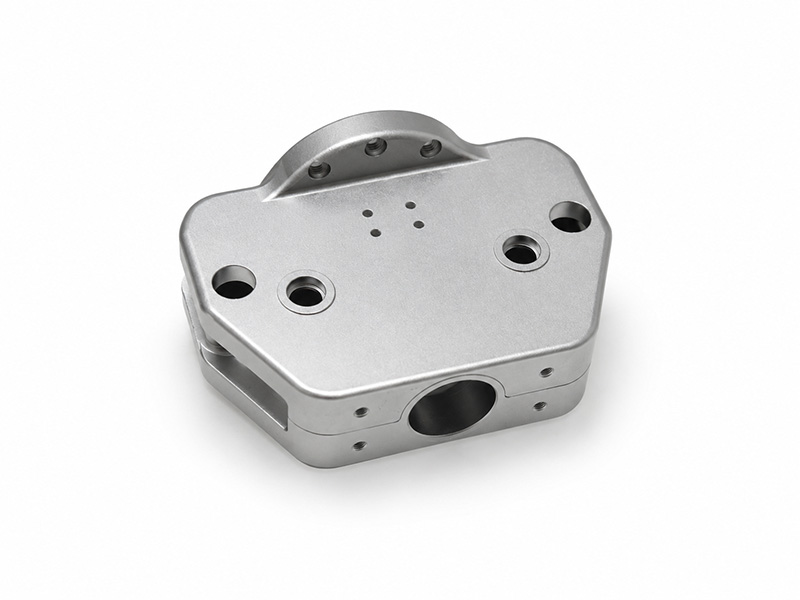

CNC milling (3-axis and 3+2 multi-face), CNC turning, turn-mill parts
Materials
Aluminum (6060, 6061, 6082, 7075), stainless steel (303, 304, 316), carbon and alloy steel, brass, copper, titanium, engineering plastics (POM, nylon, glass-fiber reinforced). More on aluminum CNC machining and stainless steel CNC machining.
Finishes

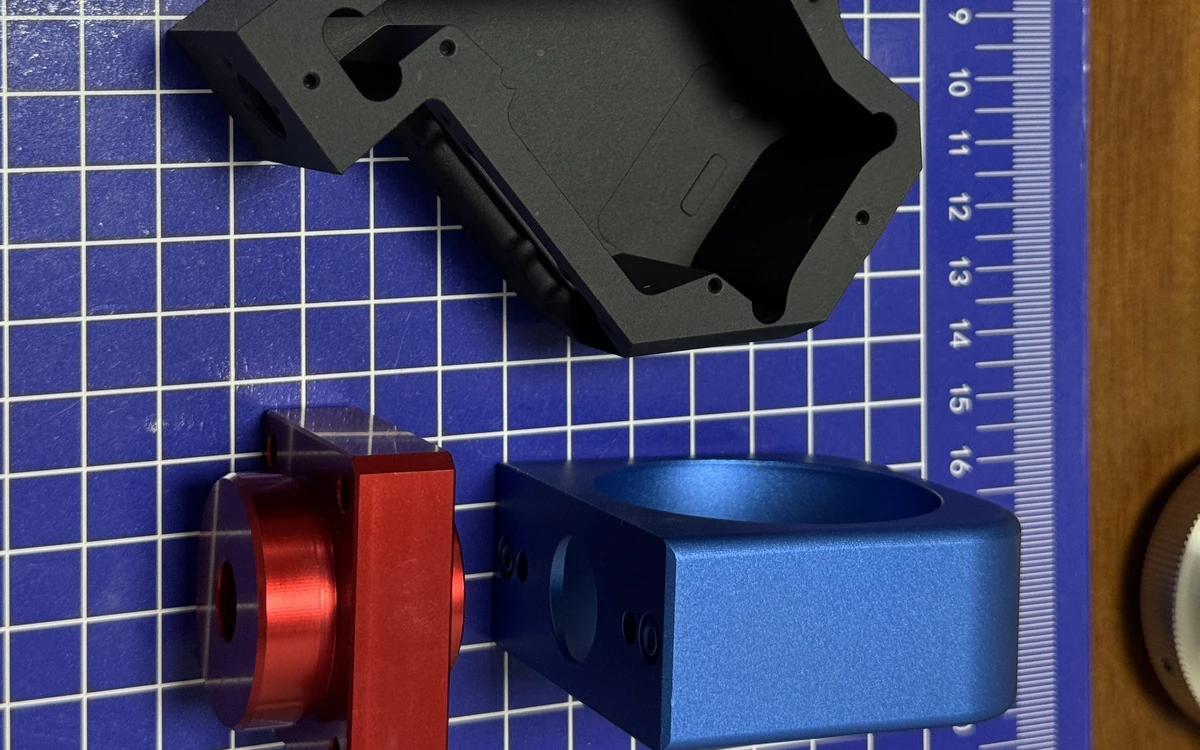

Anodizing including color, nickel and other plating, heat treatment, EDM, laser marking, through managed partners
Quantities
Batches of 20 to 10,000 pcs, prototypes first; one part number or a full project
Inspection

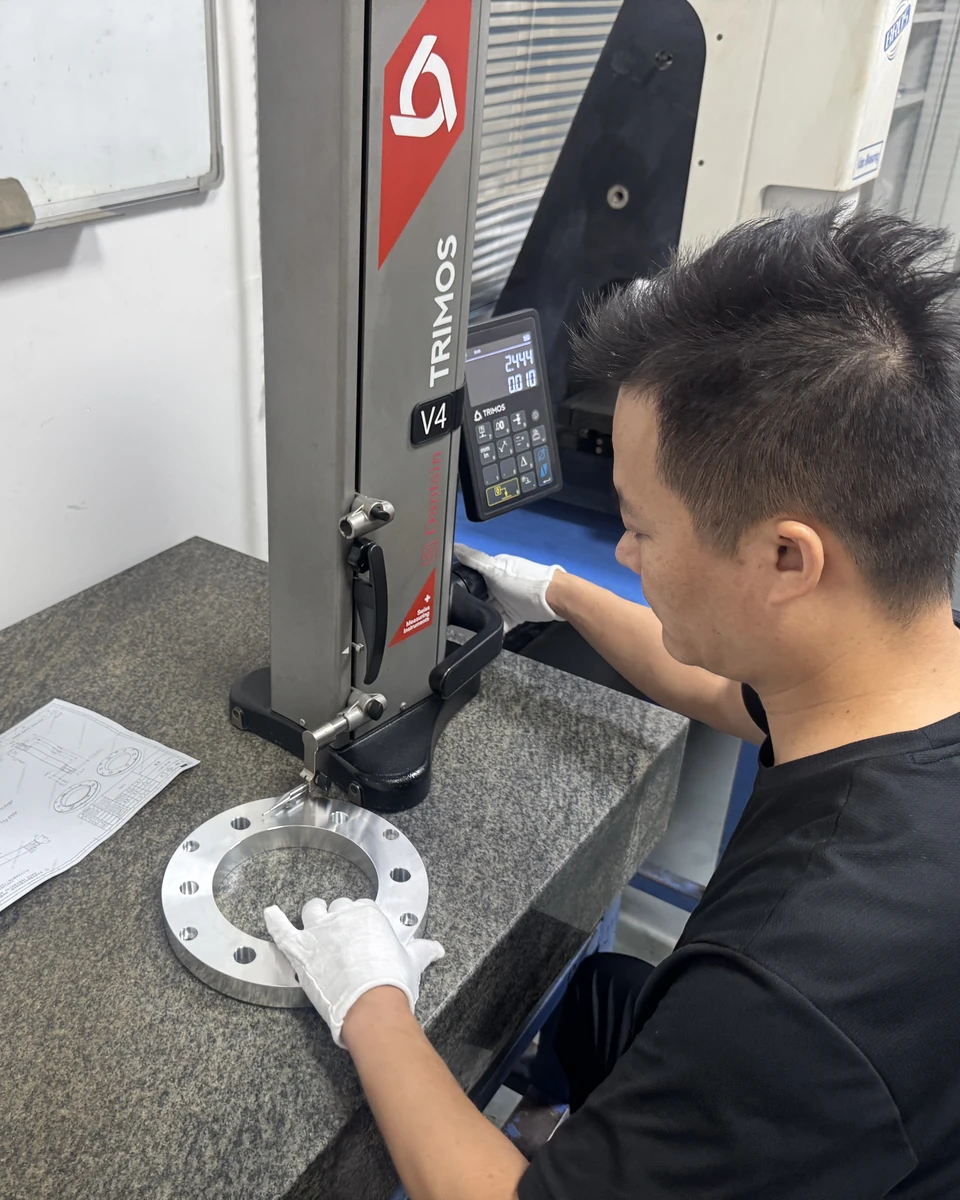

In-house CMM, micrometers, height gauges, thread and pin gauges, optical projector, roughness tester
Equipment
About 23 CNC machines and lathes in-house. Full equipment list →
Key facts

Meili Machining in numbers

FactoryDongguan, Guangdong, China; since 2017. Legal entity: Dongguan Meili Machinery Co., Ltd.
MachinesAbout 23 in-house: 5 three-axis and 10 3+2 machining centers, 8 CNC lathes
Part sizeMilling up to 1000 × 400 × 200 mm; turning about Ø400 × 900 mm
TolerancesStandard ±0.05 mm milled, ±0.02 mm turned; critical ±0.01 mm milled, ±0.005 mm on turned diameters, confirmed at drawing review
QuantitiesPrototypes from 1 pc; batches up to 10,000 pcs per part number
Prototype lead time7–20 days, depending on part complexity; simple aluminum parts in 2 days as rush
QuoteWithin 24 h, DFM feedback before the price; prototype quotes include batch prices
InspectionIn-house Hexagon CMM; free first-article report on your first order
ShippingEXW, FOB, DAP or DDP; about 3–40 days in transit
RemakeOff-drawing parts remade at our cost, freight both ways, if reported within 30 days

Last updated:

Prototype → batch → production

Start with a prototype, scale to production

One drawing, one factory, the same machines at every stage. The program and fixture from your prototype are kept for the batch.

1–19 pcs

Prototypes

A few pieces to prove the design, machined from the same material grade and on the same machines as production. More on our prototype machining services. Typical prototype lead time: 7–20 days, depending on part complexity.

Short on time? We offer rush machining for simple aluminum parts in 2 days.

20–500 pcs

Small batches

Programming and fixturing shared across the batch, so the unit cost drops sharply. Every precision size checked on every part; above 100 pieces, sampling agreed with you. More on low volume CNC machining.

Up to 10,000 pcs

Production

Production batches and yearly volumes, with the delivery schedule agreed before production. Whole part lists for one machine, kitted per assembly through complete part supply.

Prototype and batch pricing

Prototype first, and know your batch price up front

Most of the cost of a one-off part is the work before the first chip: drawing review, programming, fixturing, and proving out the first part. On a 1-piece prototype, that piece carries all of it, which is why prototype machining costs more per part. On 20 pieces it is shared twenty ways, on 200 two hundred ways. A prototype quote includes batch prices: ask for 1, 20, 50, and 200 pieces, and we quote each one, so you know the production price before you order the first part.

  • Prototype quotes include prices at your batch quantities
  • Setup, programming, and first-article check paid once per batch
  • Dedicated fixtures at 20+ pieces: faster loading, identical parts
  • Repeat orders reuse the program and fixtures
Why buy direct

One factory, from drawing to delivery

No trading company in between. The people who quote your drawing are the people who machine and inspect it, so questions and schedule changes get answered at the source.

Your team talks directly to the Meili factory, with no trading company in between Trading company Your team Meili factory
01 · Send

One drawing or a whole project

STEP and PDF drawings plus your parts list, in one .zip file. 30+ part numbers is normal.

02 · Review

Risks flagged before you order

Every drawing reviewed per part number. Thin walls, plated sizes, and tight fits are raised in the quote, not after.

03 · Make

Made and inspected in-house

Machined on our own floor, finished through managed partners, then checked against your drawing. Quality process →

04 · Deliver

Labeled by part number, backed by a remake

Boxes labeled with your part numbers. Off-drawing parts are remade at our cost, freight paid both ways.

Raymond Liang, co-founder of Meili Machining, on the shop floor in Dongguan
Your contact at Meili

Raymond Liang

Co-founder & Technical Sales Manager · Dongguan factory

Raymond is your contact for quotes, drawing questions, and order updates. He works at the factory, so questions about your parts go straight to the people machining them.

For purchasing teams

Qualifying a new supplier?

Company details, equipment, inspection tools, documents, and commercial terms are on one page. Send your NDA or supplier questionnaire and we'll complete it.

Supplier Information
Legal entity
Dongguan Meili Machinery Co., Ltd.
Established
2017, Dongguan, China
Machines
5 three-axis, 10 3+2, 8 lathes
Incoterm
EXW, FOB, DAP or DDP
Payment
Bank transfer in USD, EUR, GBP and more
Language
English by email; video calls on request
Case notes

Difficult parts we made recently, with measured results

Real orders from our Dongguan factory: the problem, how we made the part, and what we measured.

All recent parts and case notes
FAQ

Questions buyers ask first

Anything else, email info@meilimachining.com.

Do you machine single prototypes?

Yes, from 1 piece. Prototypes are milled and turned on the same machines and from the same material grade as production parts. Typical prototype lead time: 7–20 days, depending on part complexity. More on our prototype machining services.

Can a prototype move straight into production?

Yes. Once you approve the prototype, the batch reuses the same program and fixtures, so production parts match the ones you tested. Batch prices are quoted with the prototype, so you know the production price before you order.

Can you quote a full project drawing package?

Yes. Put your drawings (STEP and PDF) and your parts list with quantities into one .zip file and upload it. We review every drawing, quote per part number, and list anything that needs clarification before production.

What order quantities do you accept?

Our main work is batches of 20 to 10,000 pieces per part number. Prototypes are welcome too, mainly as the first step toward a batch, on the same machines and process. Typical prototype lead time: 7–20 days, depending on part complexity. From 20 pieces the unit cost drops sharply, because drawing review, programming, and fixturing are shared across the batch. For high volumes we confirm capacity and lead time with the quote.

Do you machine the parts yourselves?

Yes. Milling and turning run on about 23 CNC machines and lathes in our own Dongguan factory. Surface finishing, heat treatment, and sheet metal are coordinated through managed partners, and we handle final inspection and packing before shipment.

How do you check part quality before shipment?

In-house inspection uses calipers, micrometers, height gauges, thread and plug gauges, an optical projector, and a roughness tester. We also run an in-house CMM for positions, profiles, and GD&T. Dimension and CMM reports are available on request. Tight tolerance CNC machining: what ±0.01 and ±0.005 mm take →

Do your prices include shipping?

They can. We ship EXW, FOB, DAP or DDP; transit time depends on the method and destination (about 3–40 days). With DAP or DDP the quote includes shipping to your address, so you can compare our price directly with a local supplier's. Import duties and taxes are paid by the buyer, except under DDP.

What happens if parts don't meet my drawing?

We remake them at our cost and pay the shipping both ways. A part is nonconforming when it doesn't meet the requirements on your drawing — dimensions, tolerances, threads, material, or finish. Features without a stated tolerance follow ISO 2768-m. Report it within 30 days of delivery with photos or inspection data, and we'll confirm and arrange the remake.

Can you sign an NDA and complete our supplier questionnaire?

Yes. An NDA is available on request before you share drawings. Send your supplier questionnaire or onboarding forms and we will complete them. Company, equipment, inspection, and commercial details are summarized on our supplier information page.

Start with one project

Send the drawings for your next machine build.

One part or a full package. We review every drawing, quote each part number with the shipping terms you choose, and flag questions before production.
